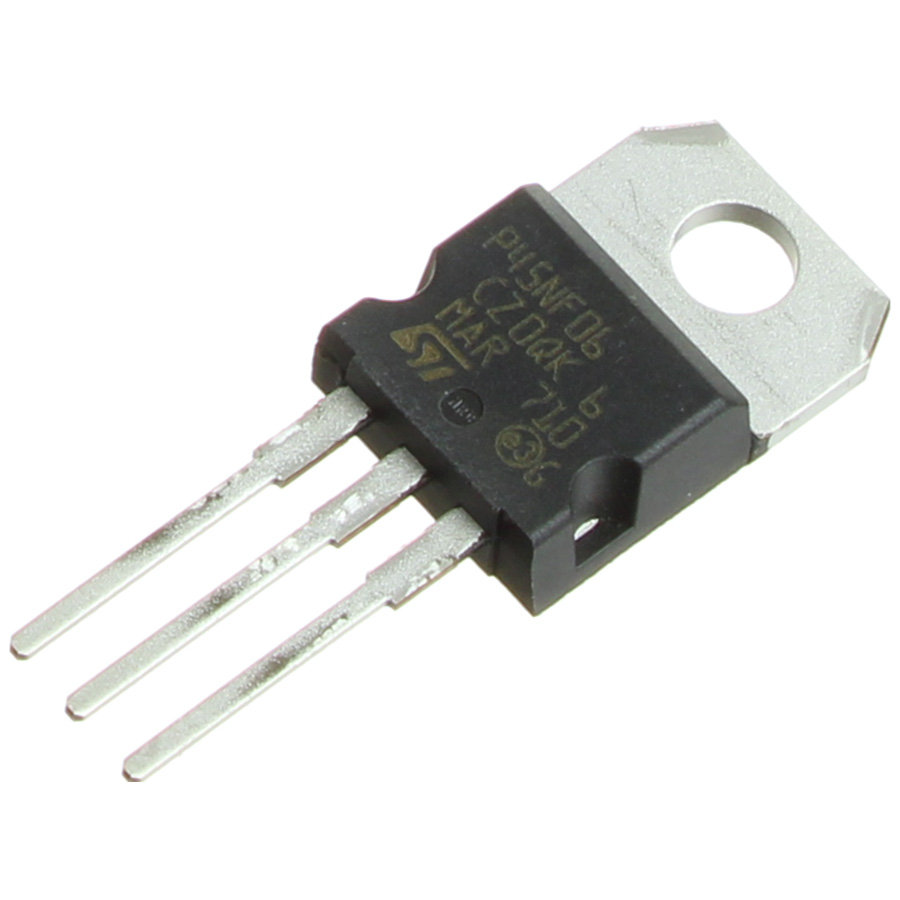

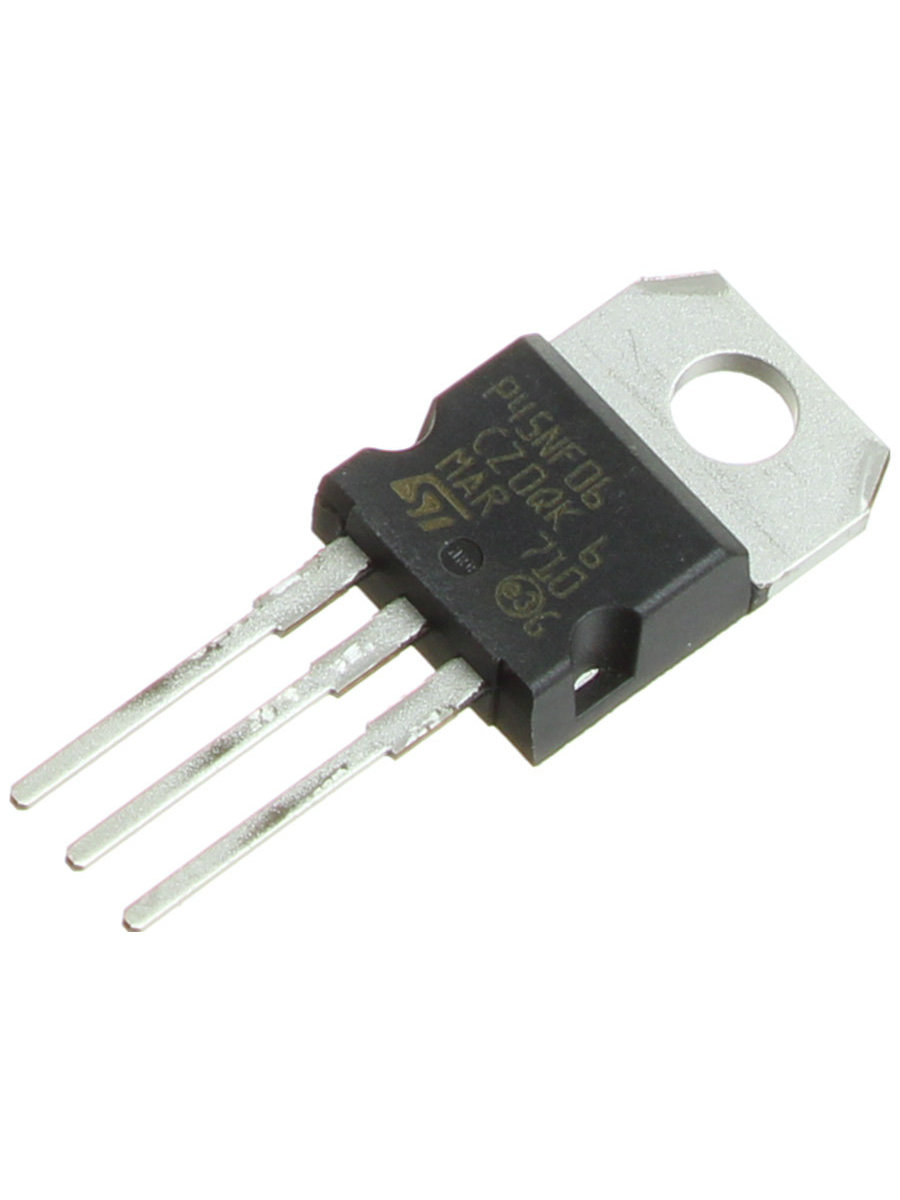

Транзистор STP45NF06 TO-220AB STM (N-канал 60В 38А 80В)

Транзистор STP45NF06 TO-220AB STM (N-канал 60В 38А 80В)

Тип транзистора: Транзистор полевой MOSFET N-канальный 60В 38А 80Вт, 0.028 Ом
MOSFET N-CH 60V 38A 3-Pin(3+Tab) TO-220
Производитель: ST Microelectronics

Технические параметры
Transistor Polarity N Channel; Continuous Drain Current Id
Fall Time: 10 ns
Forward Transconductance - Min: 18 S
Id - Continuous Drain Current: 38 A
Maximum Operating Temperature: +175 C
Minimum Operating Temperature: -65 C
Pd - Power Dissipation: 80 W
Product Type: MOSFET
Rds On - Drain-Source Resistance: 28 mOhms
Rise Time: 40 ns
Typical Turn-Off Delay Time: 28 ns
Typical Turn-On Delay Time: 12 ns
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs - Gate-Source Voltage: -20 V, +20 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Maximum Continuous Drain Current 38 A
Maximum Drain Source Resistance 28 mΩ
Maximum Drain Source Voltage 60 V
Maximum Gate Source Voltage -20 V, +20 V
Maximum Gate Threshold Voltage 4V
Maximum Operating Temperature +175 °C
Maximum Power Dissipation 80 W
Minimum Gate Threshold Voltage 2V
Minimum Operating Temperature -55 °C
Typical Gate Charge @ Vgs 32 nC @ 10 V
Тип корпуса: TO-220AB

Количество в упаковке, шт: 1
