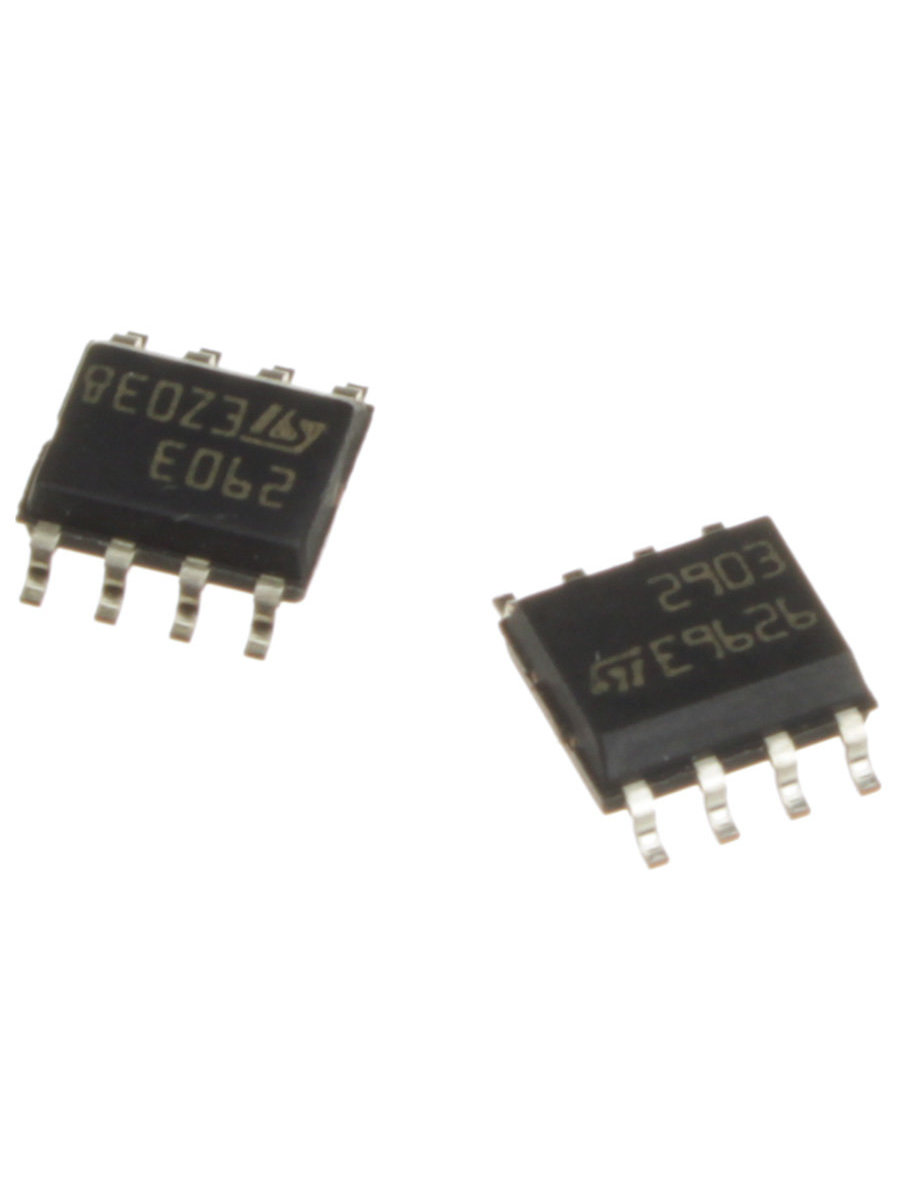

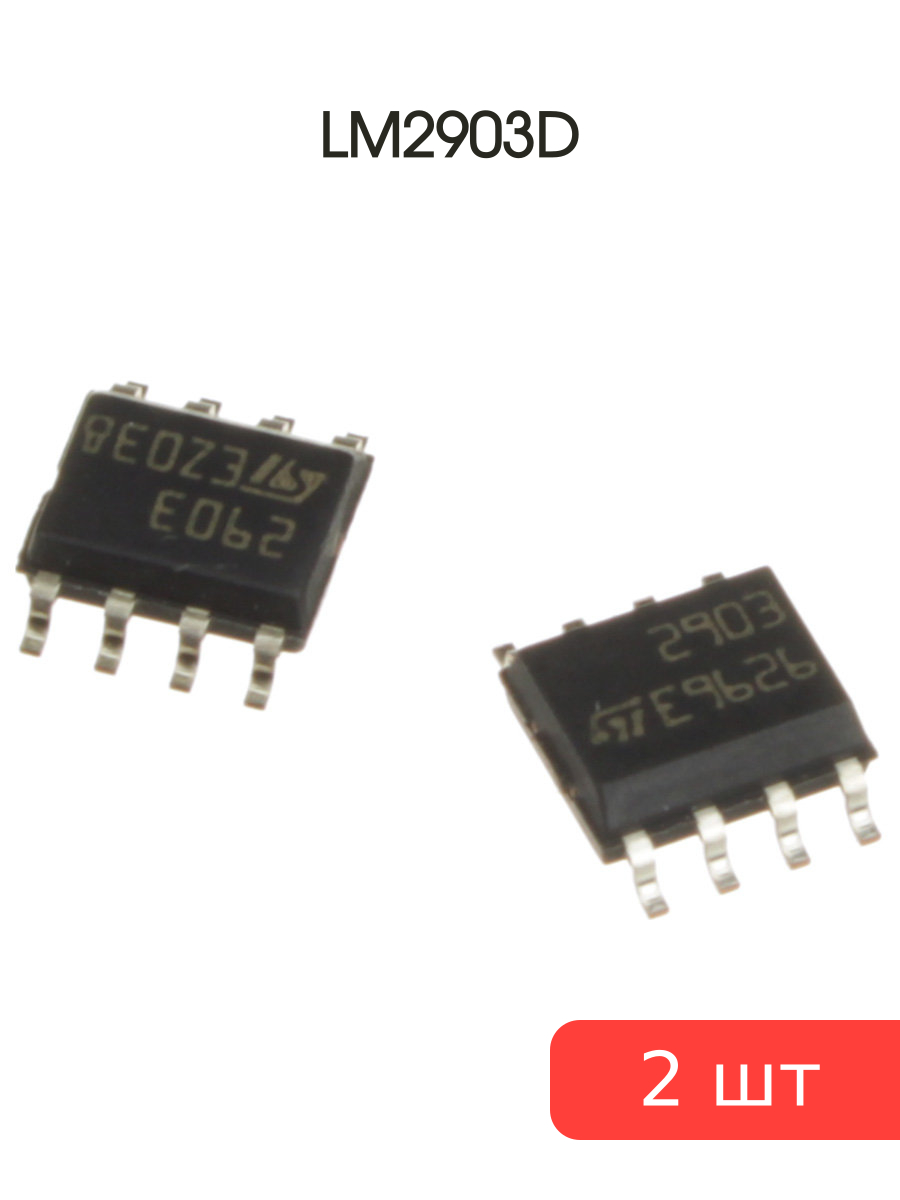

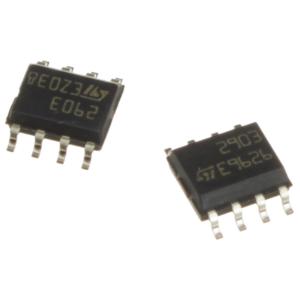

Микросхема LM2903D SO8 STM (упаковка 2шт)

Микросхема LM2903D SO8 STM (упаковка 2шт)
Тип микросхемы: Компаратор сдвоенный 1300нс смещение 1мВ ток входа 25нА усиление 200000 ток выхода 16мА потребляемый ток 0.4мА питание 2…36В (±1.0…±18) -40...+85°С
Производитель: STM

Технические параметры
Manufacturer Type Voltage Comparator
Maximum Dual Supply Voltage (V) ±18
Maximum Input Bias Current (uA) 0.25 5V
Maximum Input Offset Voltage (mV) 7 5V
Maximum Operating Supply Voltage (V) ±18|36
Maximum Operating Temperature (°C) 125
Maximum Quiescent Current (mA) 1 5V
Maximum Single Supply Voltage (V) 36
Maximum Test Temperature (°C) 125
Minimum Dual Supply Voltage (V) ±1
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 2
Minimum Test Temperature (°C) -40
Mounting Surface Mount
Number of Channels per Chip 2
Output Type Open Collector
Power Supply Type Dual|Single
Typical Dual Supply Voltage (V) ±9|±15|±12|±3|±5
Typical Output Current (mA) 16 5V
Typical Response Time (us) 1.3
Typical Response Time Range (us) 0.5 to 5
Typical Single Supply Voltage (V) 3|5|9|15|12|18|24|28
Typical Voltage Gain (dB) 106.02
Typical Voltage Gain Range (dB) 90 to 110
Maximum Input Bias Current - (uA) 0.25@5V
Maximum Input Offset Voltage - (mV) 7@5V
Maximum Operating Supply Voltage - (V) 36I??18
Military No
Operating Temperature - (??C) -40~125

Корпус SO8

Количество в упаковке, шт: 2
